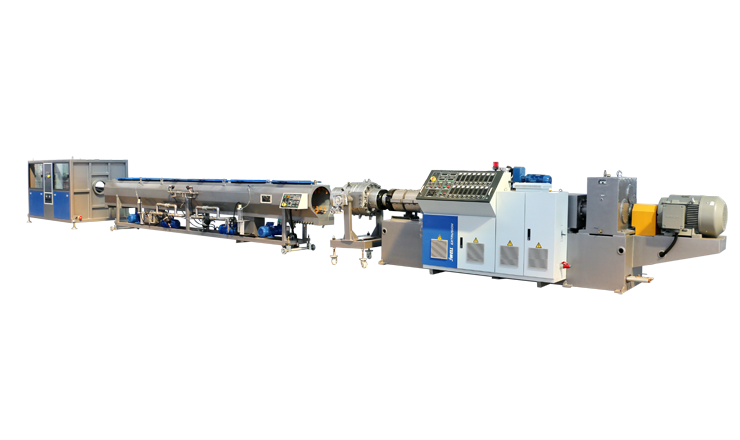

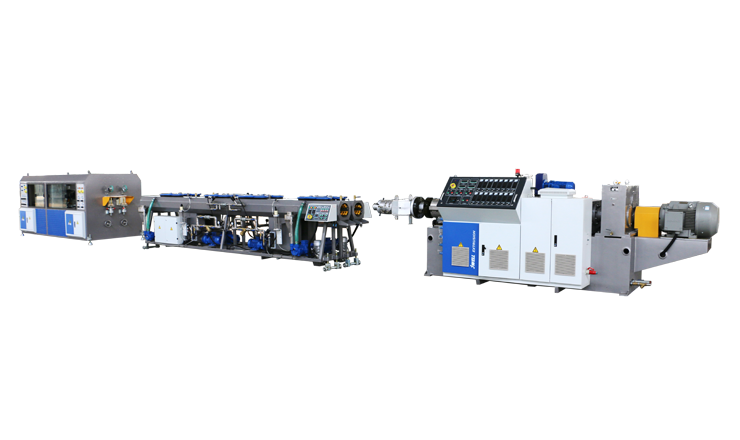

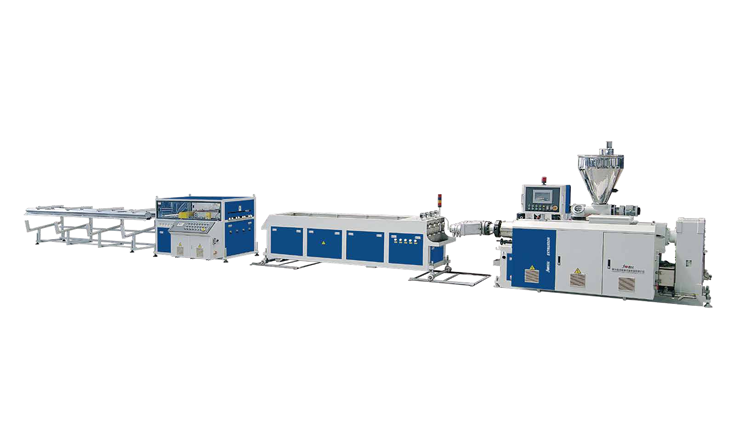

Twin Screw Pvc Pipe Machine

More than 20 years in the field of deep plow PVC pipelines, Whether you need OPVC tube equipment, CPVC tube equipment, UPVC tube equipment, or ordinary PVC pipe equipment, we can provide you with reasonable, perfect equipment technical solutions and twin screw extruder machine price according to your needs, targeting small-diameter pipes.

We twin screw compounding extruder factory and supplier china can provide two-tube extrusion, four-tube extrusion and another multi-tube extrusion plan, saving a large number of artificial and water and electricity. For large diameter pipe, we use a double vacuum structure design. This twin screw compounder extrusion line adopts special screw and mould design, materials uniform plasticizing, fast production speed, low energy consumption. Twin screw PVC pipe machine is easy to operate, reduce the technical requirements of the operation of operating workers. And effectively save the workshop space.


Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine

Descripetion about Twin screw pipe machine


Item

Specification

Place of   origin

China

Brand name

JWELL

Model number

Φ20-Φ1000mm  Double/Four   srtand

Certification

CE ISO

Minimum   order quantity

1 SET

Packaging   details

Wooden   pallet packing

Delivery   time

70days

Payment   terms

TT. LC


Specifications of Twin Screw Pvc Pipe Machine

1、PVC、UPVC Water Supply & Drainage Pipe and CPVC Electric Protection Pipe Extrusion Line


Line   Type

Diameter(mm)

Output(kg/h)

Extruder

Power(kw)

JWG-PVC-160

Ø50~Ø160

200-300

SJZ65/132

100

JWG-PVC-250

Ø75~Ø250

200-300

SJZ65/132

110

JWG-PVC-315

Ø200~Ø315

300-400

SJZ80/156

180

JWG-PVC-450

Ø200~Ø450

400-500

SJZ80/173

245

JWG-PVC-630

Ø315~Ø630

650-750

SJZ92/188

350

JWG-PVC-800

Ø400~Ø800

1000-1300

SJP130/26

420

JWG-PVC-1000

Ø500~Ø1000

1150-1300

SJP135/31

460

JWG-PVC-1200

Ø800~Ø1200

1150-1300

SJP135/31

550


2、PVC Pipe Two Stand and Four Stand Electric Protection Pipe Extrusion Line


Line   Type

Diameter(mm)

Output(kg/h)

Extruder

Power(kw)

JWG-PVC-32    fours trand

Ø20~Ø32

200-300

SJZ65/132

104

JWG-PVC-63    two trand

Ø20~Ø63

200-300

SJZ65/132

105

JWG-PVC-110   two trand

Ø50~Ø110

300-400

SJZ80/156

145

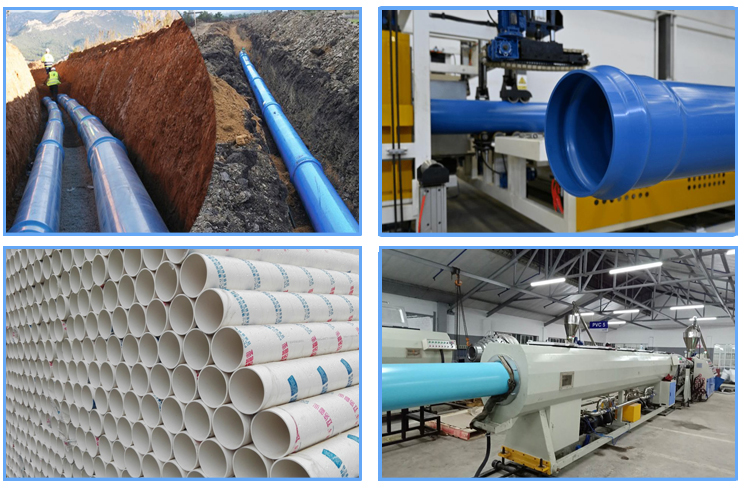

Twin screw pvc pipe machine Application


Twin screw pvc pipe machine Application

The PVC pipe from pipe extrusion machine has the characteristics of light, corrosion, corrosion, beautiful appearance, no bad smell, easy processing, convenient construction, and has gained more and more extensive applications in construction projects. Mainly used as tap water water supply system piping, drainage, exhaust, and sewage hygiene pipe, underground drainage system, rain tube and wire mounting supporting pipe, etc. Excellent chemical resistance PVC tube produced by lab scale twin screw extruder has good acid, alkali, corrosion resistance, and wide application industrial field


FAQ about Twin Screw Pvc Pipe Machine

What is the difference between PVC-U tube and PVC? +

In the production of PVC production, in order to increase the plasticizing performance of PVC, increase productivity, add plasticizers (such as DOP, DBP, DINP, etc.), while the PVC product added to add plasticizers is soft. PVC products that do not add plasticizers during processing are UPVC


What is the difference between PVC-U tube and PVC-O? +

PVC-U tube: The polyvinyl chloride PVC-U pipe for water supply is a PVC resin as a main raw material, adding an appropriate amount of auxiliary, mixed, extruded, diameter, cooling, cutting, and expansion, etc.

PVC-O tube: Chinese name biaxially oriented polyvinyl chloride, is the latest form of the PVC tube, and the PVC-U pipe produced by the extrusion method will be axially stretched by the tube manufactured by special orientation process. To stretch, the PVC long chain molecules in the pipe are arranged in a biaxial regular arrangement, high strength, high toughness, high-resistance, anti-fatigue of PVC pipe.


How about CPVC pipe corrosion resistance compared to steel? +

t is much higher than carbon steel pipe. The greatest feature of CPVC pipes is that the corrosion resistance is high, convenient, fast, and disadvantages are rigid strength.

Twin screw pvc pipe machine Performance and Advantages


We have more than 40 years of experience in production and processing of pipe screw barrels

24 years of experience in the processing and manufacture of pipeline extrusion line machine and laboratory twin screw extruders, customers all over 120 countries and regions.

1、 Advanced SIEMENS computer control system realizes integration and closed-loop control of the whole line, easy to analyze (energy consumption display and analysis), remote diagnosis (fast after-sales service), equipment maintenance reminder (humanized reminder), raw materials Savings (advanced rice weight control technology) keeps the wall thickness in a very narrow tolerance)

2、The design of the combination of the BM plus barrier kneading structural screw in the spiral slotted feeder, 38 long diameter ratio can be obtained, and high yields can also obtain higher pipe quality, and the hard alloy coating screw and double The metal barrel guarantees long-term reliable use under high efficiency;

3、high torque precision reducer and AC frequency conversion or permanent magnet servo motor adoption, ensuring the stability and excellent energy consumption of long-term high extrusion production;

4、 Optimized high-speed molds, discs, or wet-type sleeves to ensure high quality of products while meeting high-speed production;

5、 unique inverter vacuum automatic control device perfectly solves noise, energy-saving and ensuring stability of the product size;

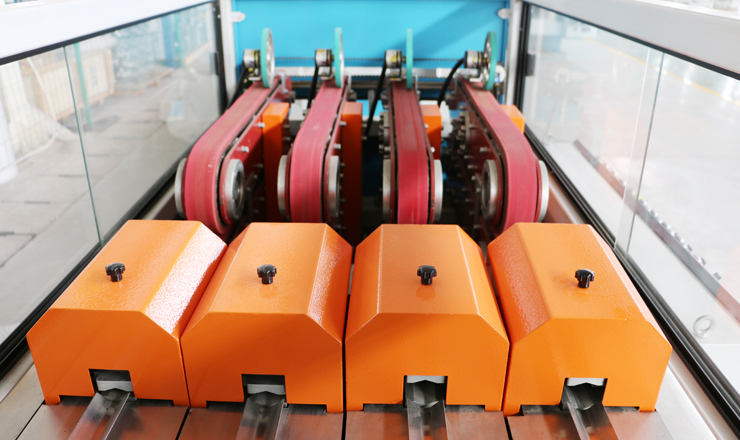

6.、The tractor equipped with a servo motor ensures a wide traction range, high-precision synchronous operation and uses a digital host communication interface;

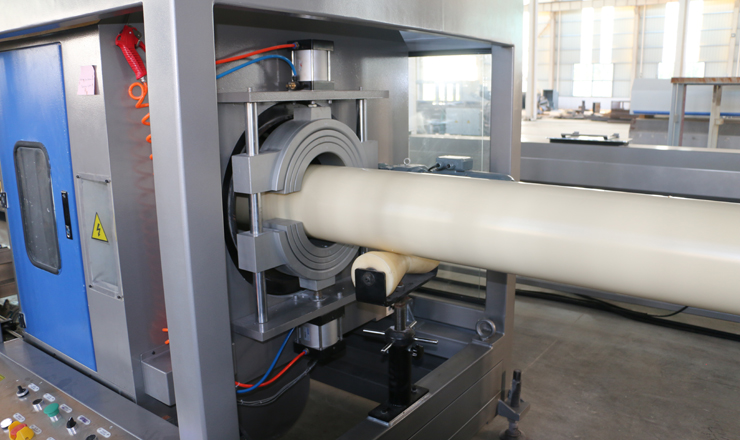

7、Configure a stable perfect cutting flying knife (small diameter), dust-free and double-knife (large diameter) cutting machine.


Twin Screw Pvc Pipe Machine Packing & Shipping

Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
Twin Screw Pvc Pipe Machine
