Technical Research-CPE Stretching Film Line

CPE Stretch Wrap Film is a type of stretch wrap film made mainly from chlorinated polyethylene, featuring good stretchability, toughness, puncture resistance, and transparency.

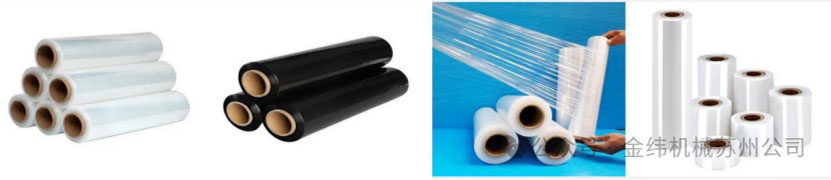

Product Classification

1.Hand - used stretch film: The conventional thickness is about 0.018mm (1.8 si), the width is 500mm, and the weight is about 5KG.

2. Machine - used stretch film: The conventional thickness is about 0.025mm (2.5 si), the width is 500mm, and the weight is about 25KG.

Introduction to the uses of stretch film products

Industrial products:

Bundle and fix pallet goods to prevent scattering. When semi - finished products / finished products are stored and transferred, they are dust - proof, moisture - proof, scratch - proof, and convenient for handling and management.

Food industry:

The compliant film is used for pallet packaging of meat, frozen products, etc., to isolate air and keep freshness. Wrap food turnover boxes to prevent falling and pollution.

Daily necessities and retail industry:

Bundle bottled / canned goods into groups for easy handling and sales. Wrap furniture, home appliances, etc. to prevent scratches, which is suitable for e - commerce shipping or moving.

Agriculture and others:

Wrap agricultural product turnover baskets to reduce extrusion, and the breathable type can ensure ventilation. Wrap building materials and outdoor products in multiple layers to prevent erosion from rainwater and dust and protect the surface.

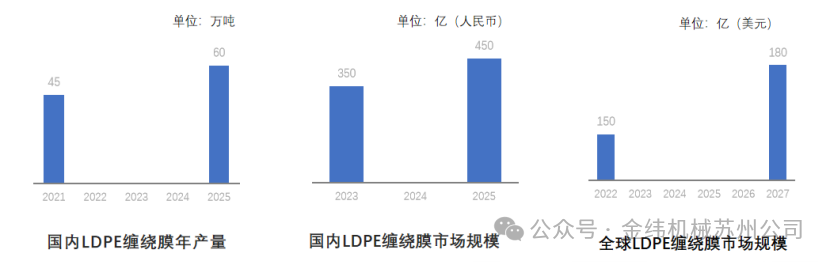

Market Data

As a major country in stretch film manufacturing, both the export volume and value of stretch films in China show a steady growth trend. According to the analysis data of the stretch film market size, in 2020, China's stretch film export volume was 530,000 tons, a year-on-year increase of 3.3%; the export value was 685 million US dollars, a year-on-year increase of 3.6%. In terms of the export market, China's stretch film products are mainly exported to regions such as Southeast Asia, the Middle East, and Europe.

General standards

Product Name: High-strength Stretch Wrapping Film, Machine Wrapping Film Roll, Hand Wrapping Film Roll, Plastic Wrap

Number of Layers: 3/5 layers (A/B/A or A/B/C/B/A)

Thickness: 0.012 - 0.05mm (a small amount reaches 0.008mm)

Tolerance: ≤5%

Product width: 500mm

Tolerance: ±5mm

Inner diameter of paper tube: 76mm

Raw material

Main components:

LLDPE: It serves as the base resin, providing good toughness, tensile strength, and puncture resistance. Commonly used grades are C4, C6, and C8. C8 and mLLDPE (Metallocene - Catalyzed Linear Low - Density Polyethylene) have better performance (in terms of tensile strength, toughness, and transparency).

Other components:

VLDPE (Very Low - Density Polyethylene): Sometimes added to increase flexibility and tackiness. Tackifier: It imparts self - adhesiveness (static adhesiveness) to the surface of the stretch film, preventing sliding and retraction between film layers.

PIB: It is the most commonly used, with good effects, but there is a migration problem (affecting long - term adhesive stability and transparency).

EVA: Its tackifying effect is not as good as that of PIB, but it has less migration and good transparency. Other additives: Such as slip agents (to reduce friction), anti - blocking agents (to prevent film roll adhesion), antistatic agents, color masterbatches (for producing colored films), etc.

All kinds of raw materials are thoroughly mixed in a high - speed mixer according to an accurate formula. The uniformity of the premix directly affects the physical properties and appearance of the final film.

Jwell provides high-quality formulas to help customers complete product production, meet customer expectations, and satisfy market demands.

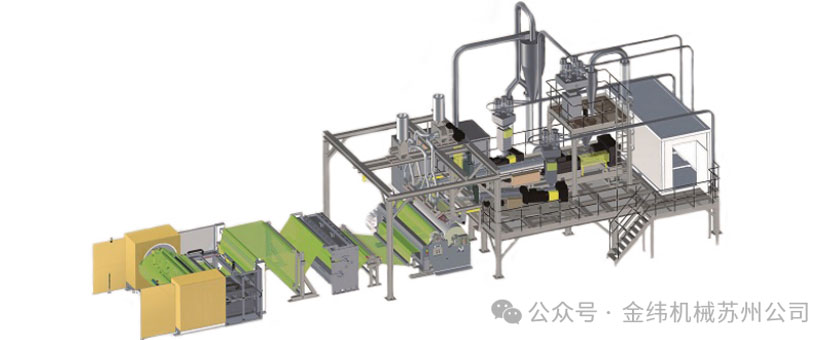

Overview of raw material production line

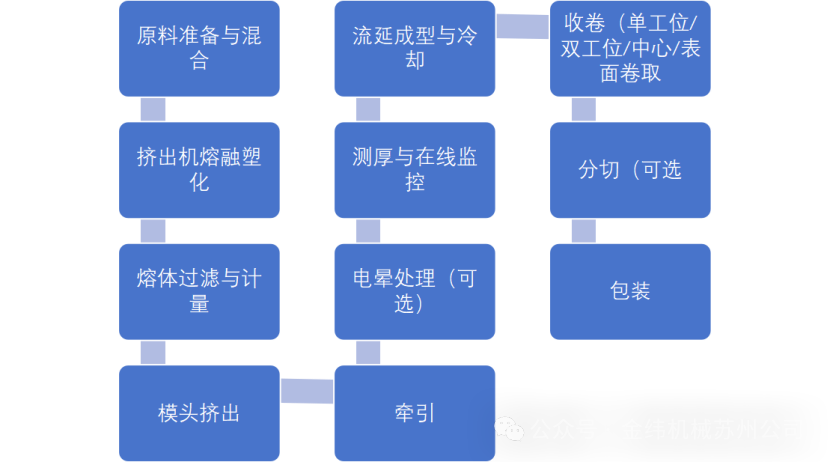

Process

Compared with the blow molding method, the casting method has a fast production speed (up to over 500m/min), good thickness uniformity (±2 - 3%), high transparency, good gloss, better physical properties (tensile strength, puncture strength, toughness), fast cooling speed (low crystallinity, good toughness), and high film surface flatness (mirror effect).

Welcome to inquire about customized solutions, make an appointment for machine testing and visit, and jointly create the future of high - end thin - film manufacturing!

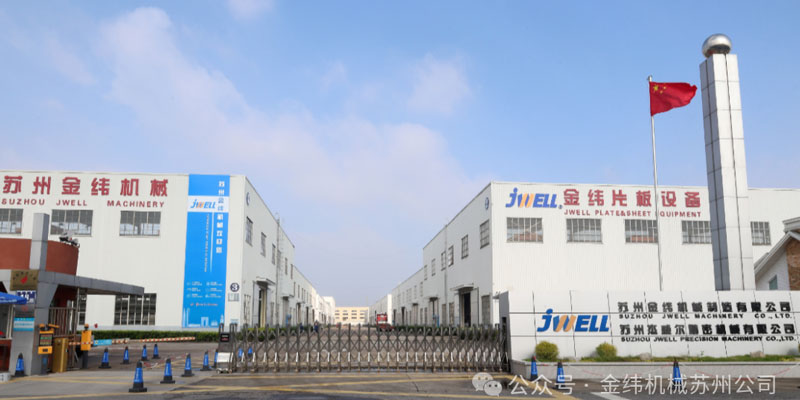

Suzhou Jwell Machinery Co., Ltd.
