Corrugated Pipe Machine

HDPE/PP/PVC single wall corrugated and double-wall corrugated pipe extrusion line offered by Jwell features full automatic control.  Jwell as corrugated pipe machine manufacturer has many patents. Our single wall corrugated pipe machine is designed for stable operation and high capacity, ensuring efficiency and reliability in production. Similarly, our double wall corrugated pipe machine ensures the creation of pipes with superior structural integrity, offering enhanced strength and durability.

HDPE/PP material use high efficient single screw extruder, and PVC material use conical twin screw extruder machine or parrallel twin screw extruder. Horizontal type corrugator adopt advanced shuttle-type structure, closed water cooling system, on-line belling. Whole corrugated pipe production line is controlled by PLC computer.

If you take interest in corrugated pipe production line or corrugated pipe extrusion line, please feel free to contact us for corrugated pipe extrusion line price.

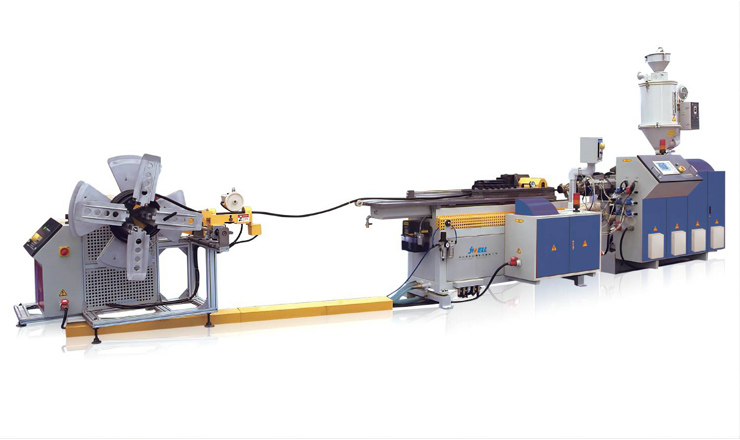

corrugated pipe machine 1

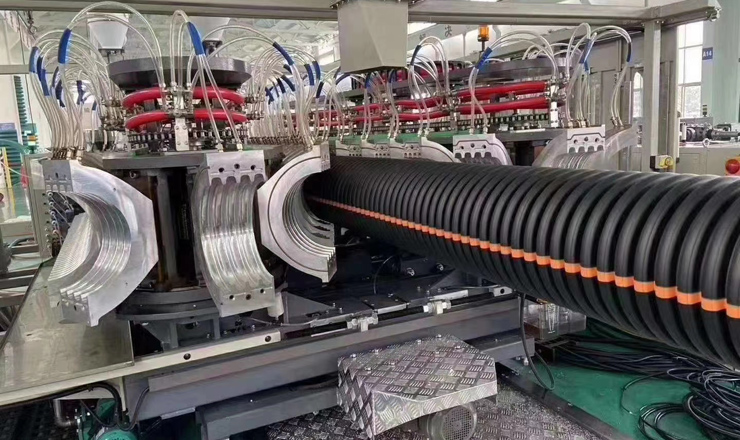

corrugated pipe machine 1

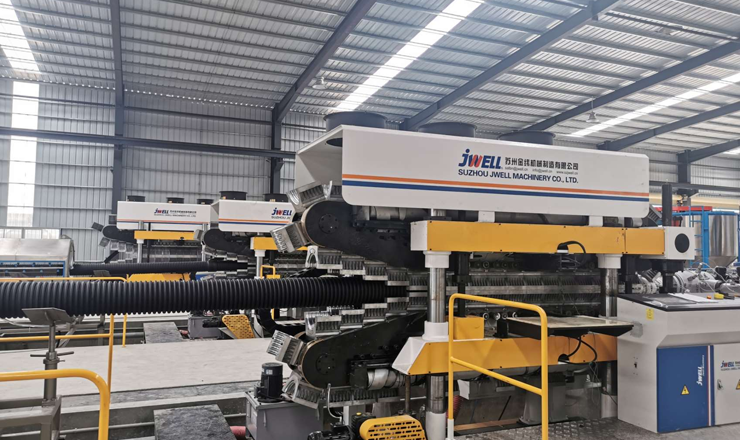

corrugated pipe machine 2
corrugated pipe machine 3

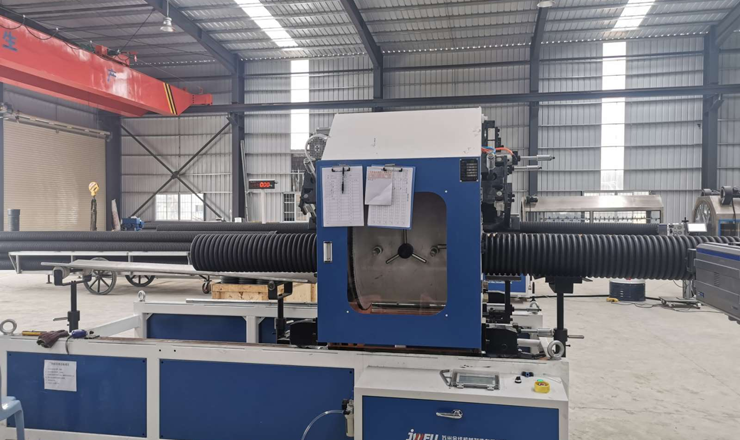

corrugated pipe machine 4

 JWELL Single/Double Wall Corrugated Pipe Machine Description


Item

Specification

Place of   origin

China

Brand name

JWELL

Model number

Single/double   corrugated Φ8-Φ1500mm

Certification

CE ISO

Minimum   order quantity

1 SET

Packaging   details

Wooden   pallet packing

Delivery   time

70days

Payment   terms

TT. LC


JWELL Single/Double Wall Corrugated Pipe Machine Specifications


1, HDPE/PP/PVC Horizontal Type Double Wall Corrugated Pipe Extrusion Line


Line   Type

Diameter(mm)

Output(kg/h)

Max   Speed(m/min)

Power(kw)

JWSBW-160

Ø90~Ø160

200-300

6

135

JWPEG-250

Ø110~Ø250

250-350

5

280

JWPEG-500

Ø200~Ø400

250-500

3

550

JWPEG-800

Ø500~Ø800

1000-1100

3

680

JWPEG-1200

Ø800~Ø1200

1000-1200

1

800

JWPEG-1500

Ø1200~Ø1500

1200-1500

0.6

1100


2, PA/PE/PP/PVC single wall, double-wall corrugated pipe extrusion line

Mini high speed single wall corrugated pipe machine can produce two diameters or three diameters single wall corrugated pipe with the same mould blocks, which reduce the cost of the mould blocks and the changing time, also increase the efficiency.


Line   Type

Diameter(mm)

Extruder

Max   Speed(m/min)

Power(kw)

JWDPG-25

Ø8~Ø20

JWS45/30

15

50

JWDPG-50

Ø12~Ø50

JWS65/33

15

70

JWDPG-63

Ø12~Ø63

JWS65/33

10

70

JWDSB-150

Ø90~Ø150

JWS75/33

5

100

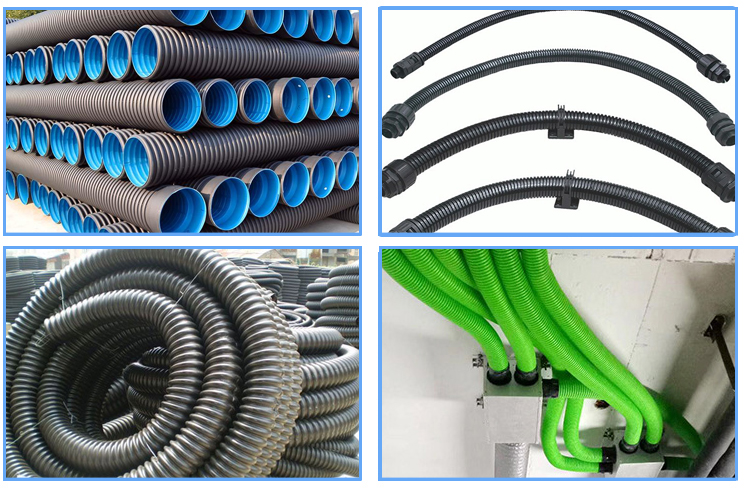

Corrugated pipe machine of Application


Corrugated pipe machine of  Application

1. Double-wall bellows of corrugated pipe extrusion line, is a new pipe with an annular structure of outer wall and a smooth inner wall, Large-diameter double-wall corrugated pipe mainly used in large water supply, water supply, drainage, sewage, exhaust, subway ventilation, mine ventilation, farmland irrigation, etc.

2. Special purpose single and double wall corrugated tubes of corrugated pipe production line have anti-high temperature, anti-wear, and high strength. Applied to electrical threading tube, automotive threading tube, sheath tube, machine tool product, packaging food machinery, electric locomotive, engineering installation, lamp, automation instrumentation, etc., market demand is larger

3. New Corrugated Pipe Extrusion Line for Ventilation System corrugated pipe for air ventilation system is produced by two different PE material. Double wall corrugated pipe, and designed by hollow structure. It is easy to install in the ceiling and roofing. Also, this corrugated pipe has good performance to bear the cement. The pipe adopt special inner layer, smoothly, easy to clear, less resistance, sound-proof, insulation


FAQ about Corrugated Pipe Machine

1.What is the difference between the double wall bellows and a single wall bellows? +

The first is a single wall bellows: the inner surface of the single-walled bellows, the outer surface is corrugated, and its bendability, the flexibility is excellent, but the fluid resistance is large, and the inner surface screw groove is used to produce suspended deposition . Therefore, the single-walled bellows are more thin, and the strength requirement is not high and needs to be bent and the small diameter tube such as threading tube, the water pipe, exhaust pipe, etc.

Double wall corrugated inner tube: a new pipe with an annular structure outer wall and a smooth inner wall, mainly used in large water supply, water supply, drainage, sewage, exhaust, subway ventilation, mine ventilation, water, subway, mine ventilation, etc. Farmland irrigation, etc. Double wall bellows inner wall color usually has blue and black, and the inner wall of some brands will use yellow


2.What is the difference between the HDPE double-deck twisted pipe and HDPE double wall bellows +

Different production processes

Although both are structural pipes. However, the double wall winding tube is a steel-plastic composite molded process, and the impact resistance is stronger. However, the HDPE double wall bellows generally be formed by a disposable extrusion.

different appearance

The former presentation is a winding, that is, spiral, and we can see the inner wall with thread. But the corrugation of the bellows is relatively smooth, which is a complete circle.


3.Double-wall corrugated pipe generally have several levels? +

Two kinds of SN8, SN4, respectively, the ring stiffness 4 or above, or more; ring stiffness 8 or above 8 or more

Corrugated pipe machine Performance and Advantages


Our large-diameter single wall and double wall corrugated pipe production line is fully automatic control, running stable and high capacity. HDPE/PP material use high efficient single screw extruder, and PVC material use conical twin screw extruder or parrallel twin screw extruder. Horizontal type corrugator adopt advanced shuttle-type structure, closed water cooling system, on-line belling. Whole corrugated pipe extrusion line is controlled by PLC computer.

Mini high speed single wall corrugated pipe machine can produce two diameters or three diameters single wall corrugated pipe with the same mould blocks, which reduce the cost of the mould blocks, corrugated pipe machine and extrusion line price and the changing time, also increase the efficiency

New Corrugated Pipe Extrusion Line for Ventilation System high precision for front-back adjustment, according to air ventilation pipe, specially design for the mould. New vertical type water cooling corrugator, precisely location of mould block, easy to change the mould.


Corrugated Pipe Machine Packing & Shipping

Corrugated Pipe Machine
Corrugated Pipe Machine
Corrugated Pipe Machine
Corrugated Pipe Machine
Corrugated Pipe Machine
Corrugated Pipe Machine
